FMHT1-77415

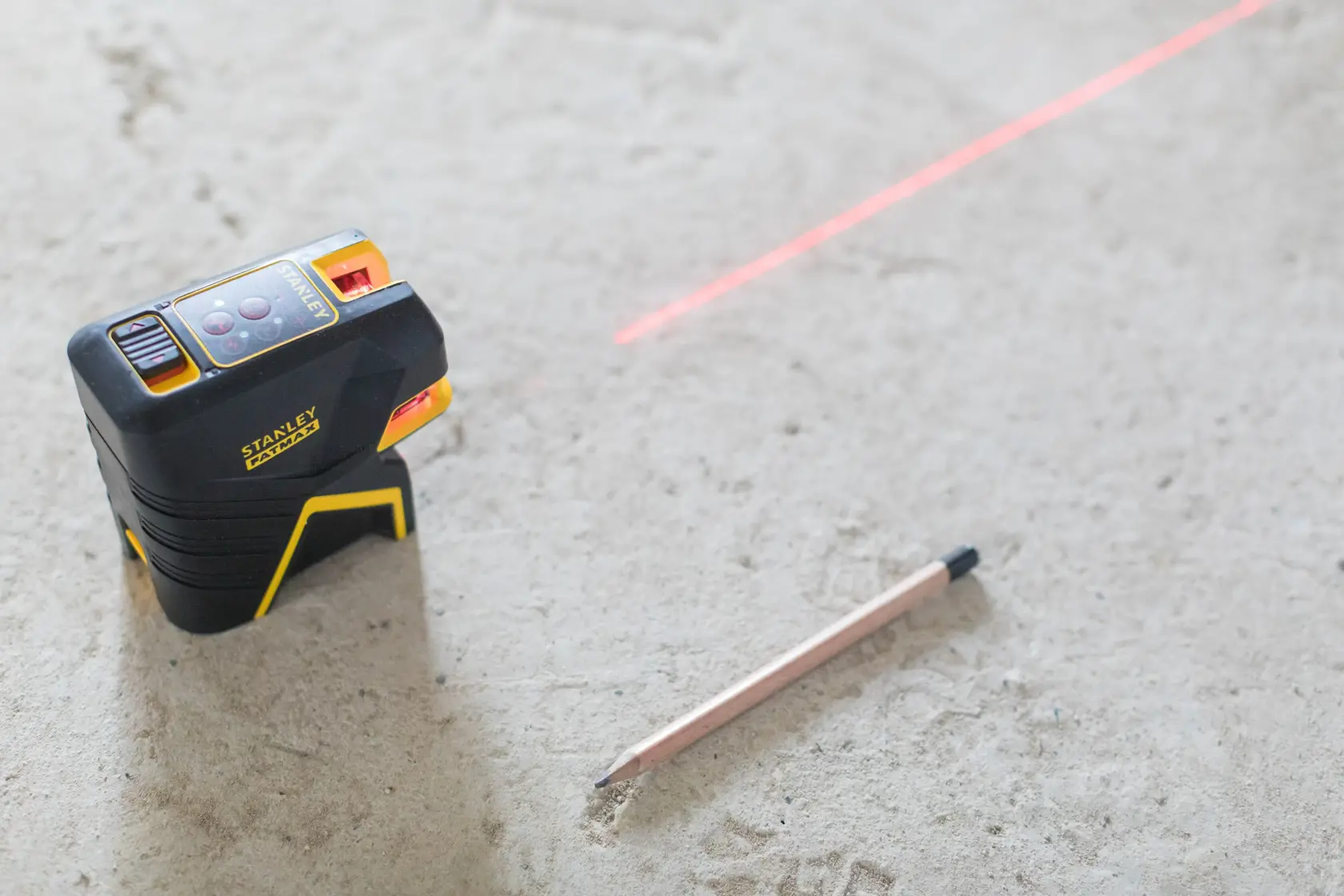

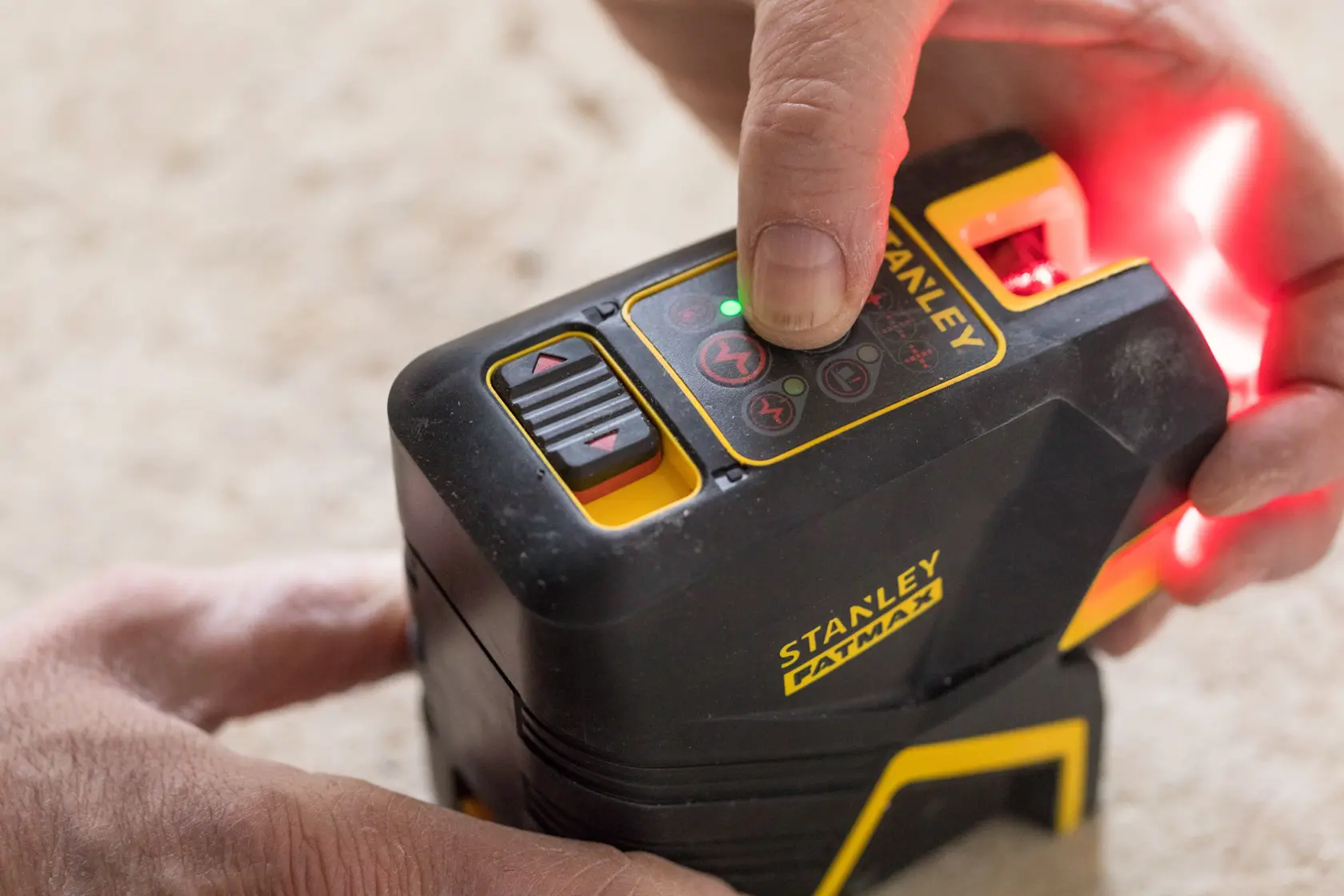

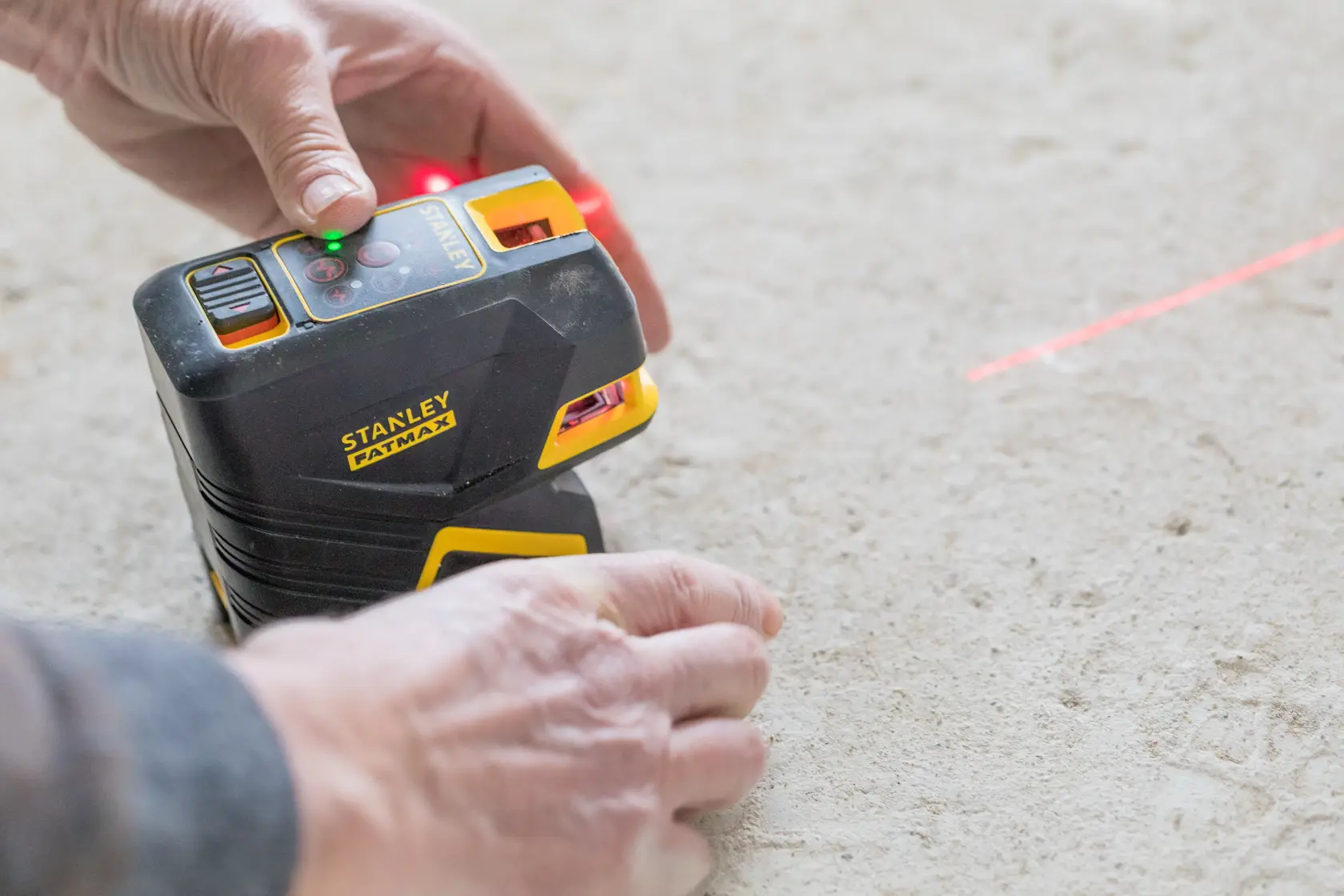

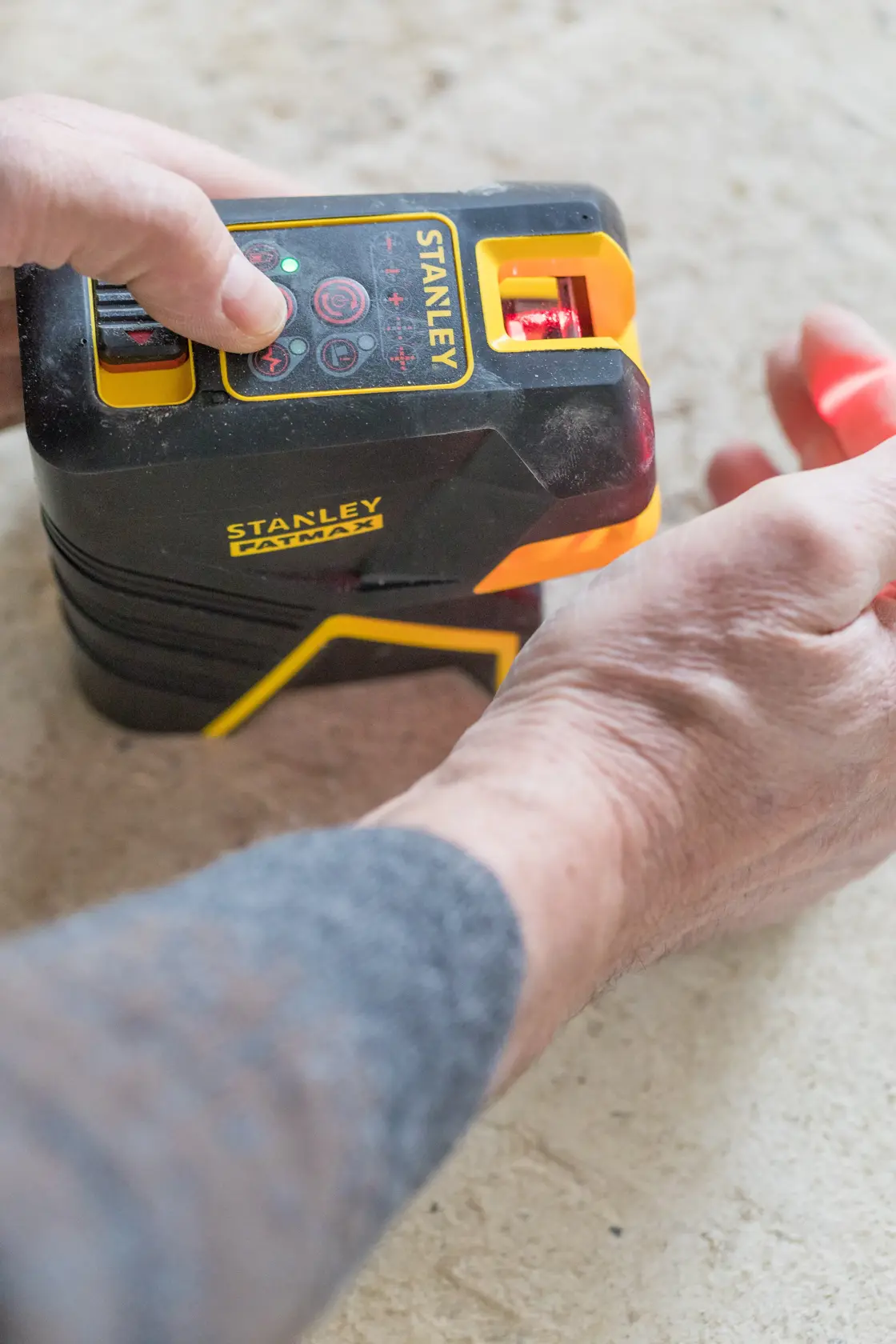

Cross Beam and 5-spot Laser Level (red)

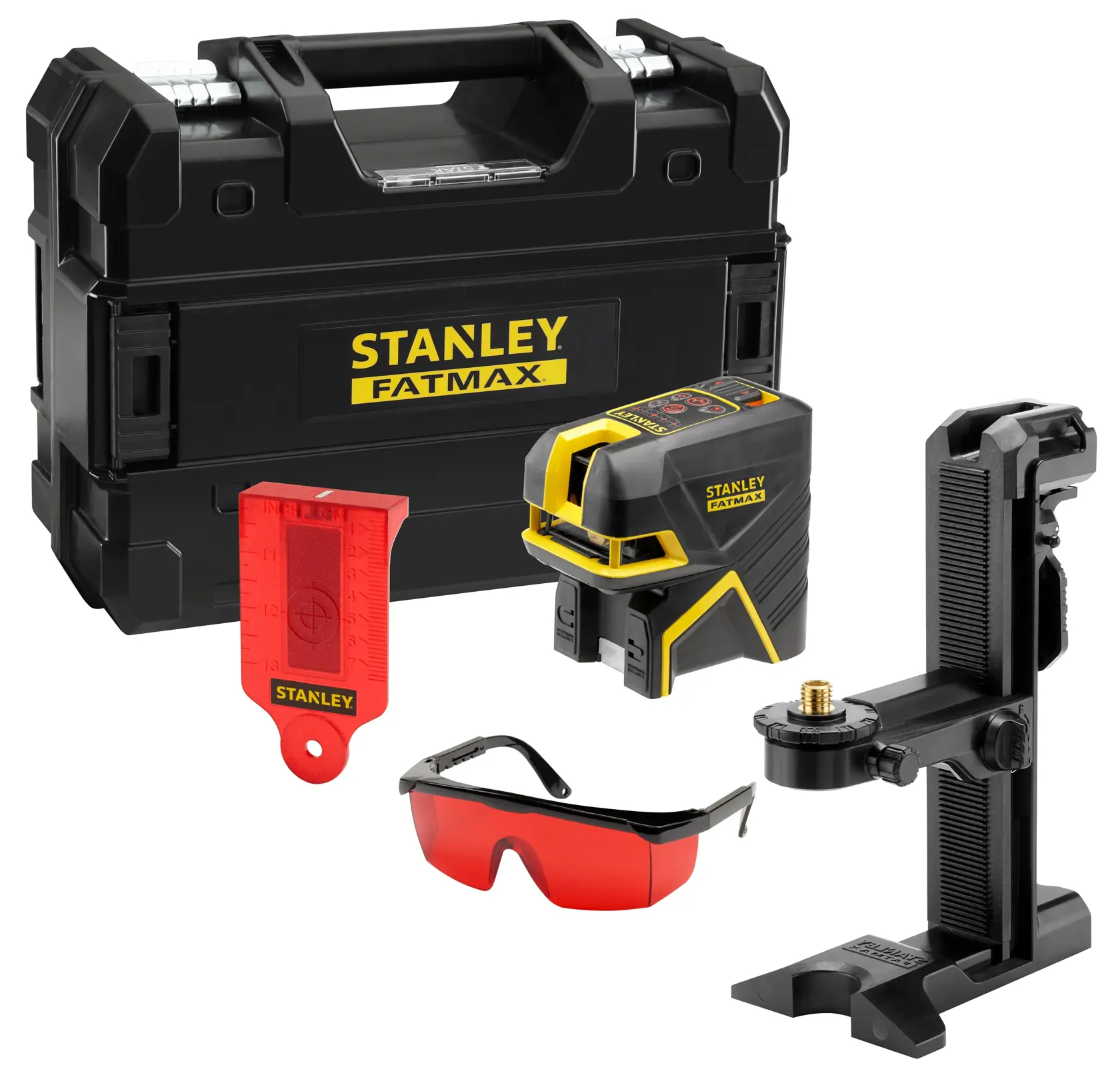

Stanley FATMAX laser level kit with case, bracket, red target, and safety glasses.

Product details

FATMAX® cross - 5 spot - red

  • Cross Line Laser Beam Projection : With 1 x horizontal and 1 x vertical line to create a cross line plus 2 independent spot points (plumb up and down)
  • Down Beam : With raised clearance provides line visibility and alignment for all track layout
  • 150° Fan Angle : Providing ample coverage with little set-up time
  • Red Beam Laser : With a visible working range of up to 20m; up to 50m with a detector
  • Precision and Accuracy : +/- 3mm at 10m
  • IP Rated to IP54 : Protects against dust and water spray
  • Pendulum Lock : For safe transportation
  • Pulsed Beam Mode : Allows for use with a detector over an extended working range, up to 50m
  • Runs on : 4xaa NiMH (supplied)

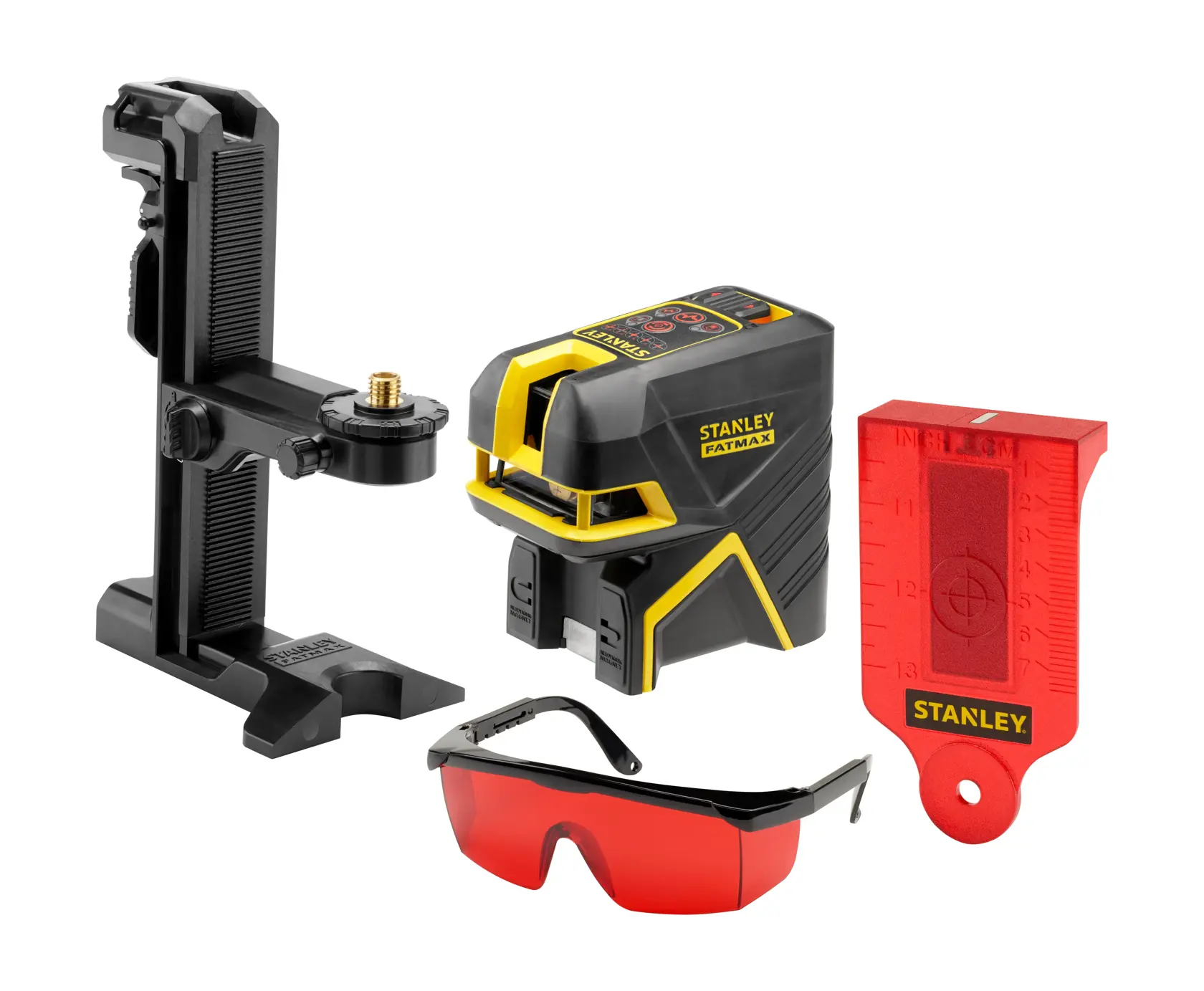

  • Includes : Multi bracket, glasses, battery charger

Product Type
Line Laser Level
Power Source
Unpowered
Total Number of Batteries
4
Color
Black
Measurement Accuracy
± 3mm @ 10 m

  • (1) Kit box

  • 1 Year Limited Warranty
