STHT77504-1

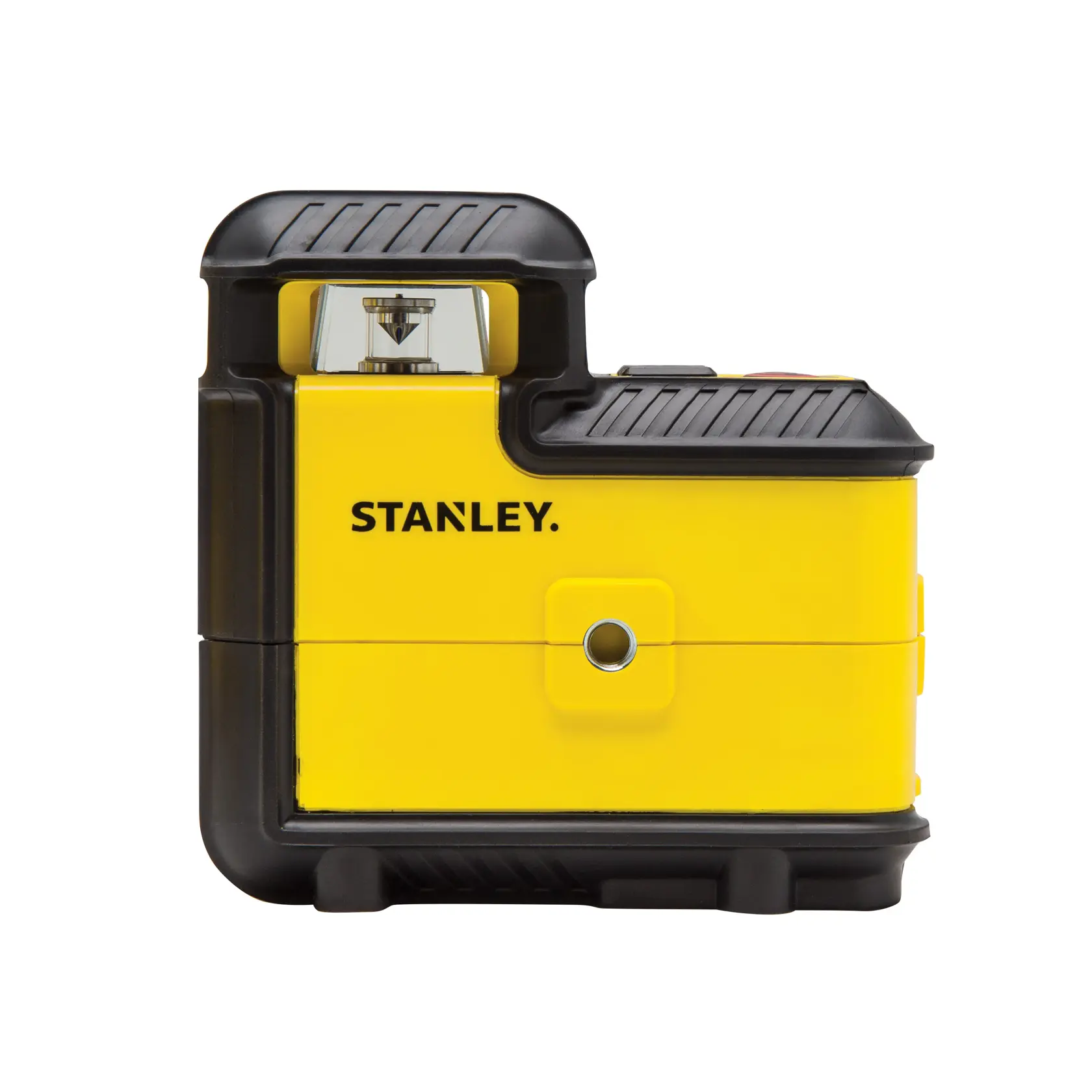

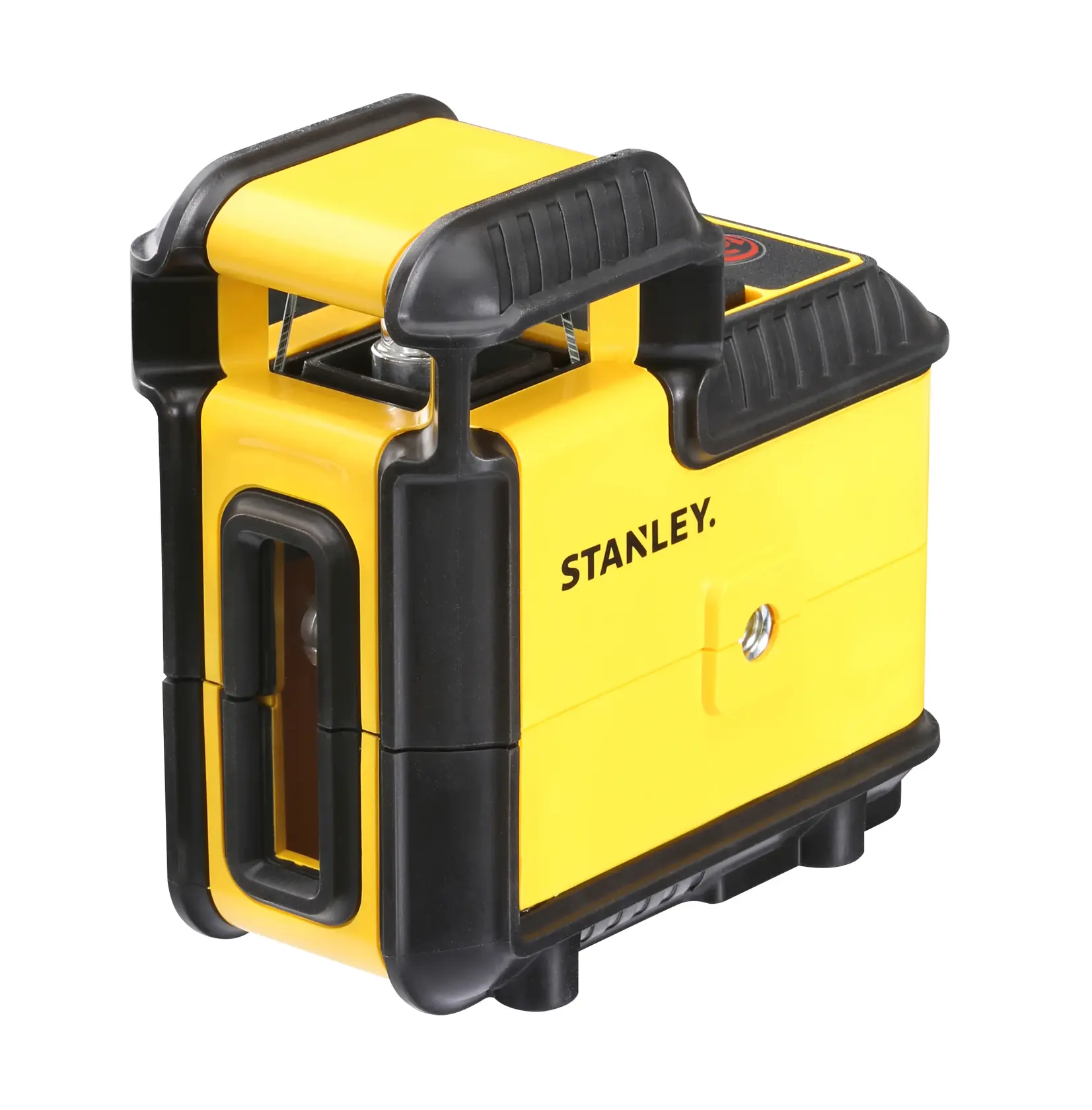

360° Cross Line Laser Level (red)

Foto des gelb-schwarzen STANLEY STHT77504-1 Laser-Niveaus, vorne abgewinkelt auf weißem Hintergrund.

Product details

Red beam laser, 20m range, 1x360° horizontal and 1x vertical line; tripod mountable for Pro alignment.

  • Cross Line Laser Beam Projection : With 1 x 360° horizontal and 1 x vertical line to create a cross line
  • Red Beam Laser : With a visible working range of up to 20m
  • Precision and Accuracy : +/- 4mm at 10m
  • IP Rated to IP50 : Protects against dust
  • Pendulum Lock : For safe transportation
  • Self Leveling : To +/- 4°
  • Runs on : 4 x AA batteries (supplied)

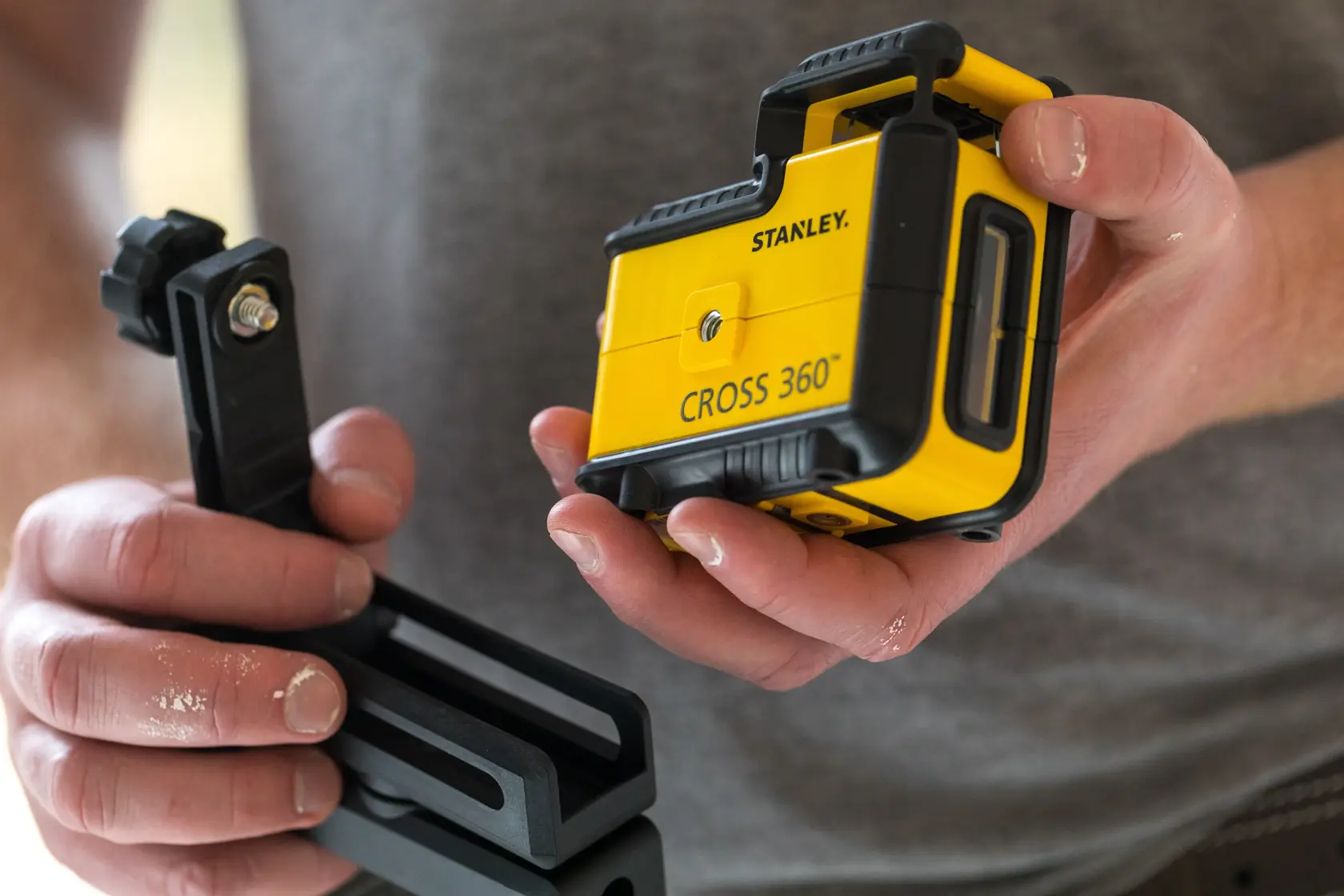

  • Includes : Quicklink™ bracket system and soft pouch

Product Type
Line Laser Level
Voltage
1.5V
Power Source
Cordless
Total Number of Batteries
4
Color
Black

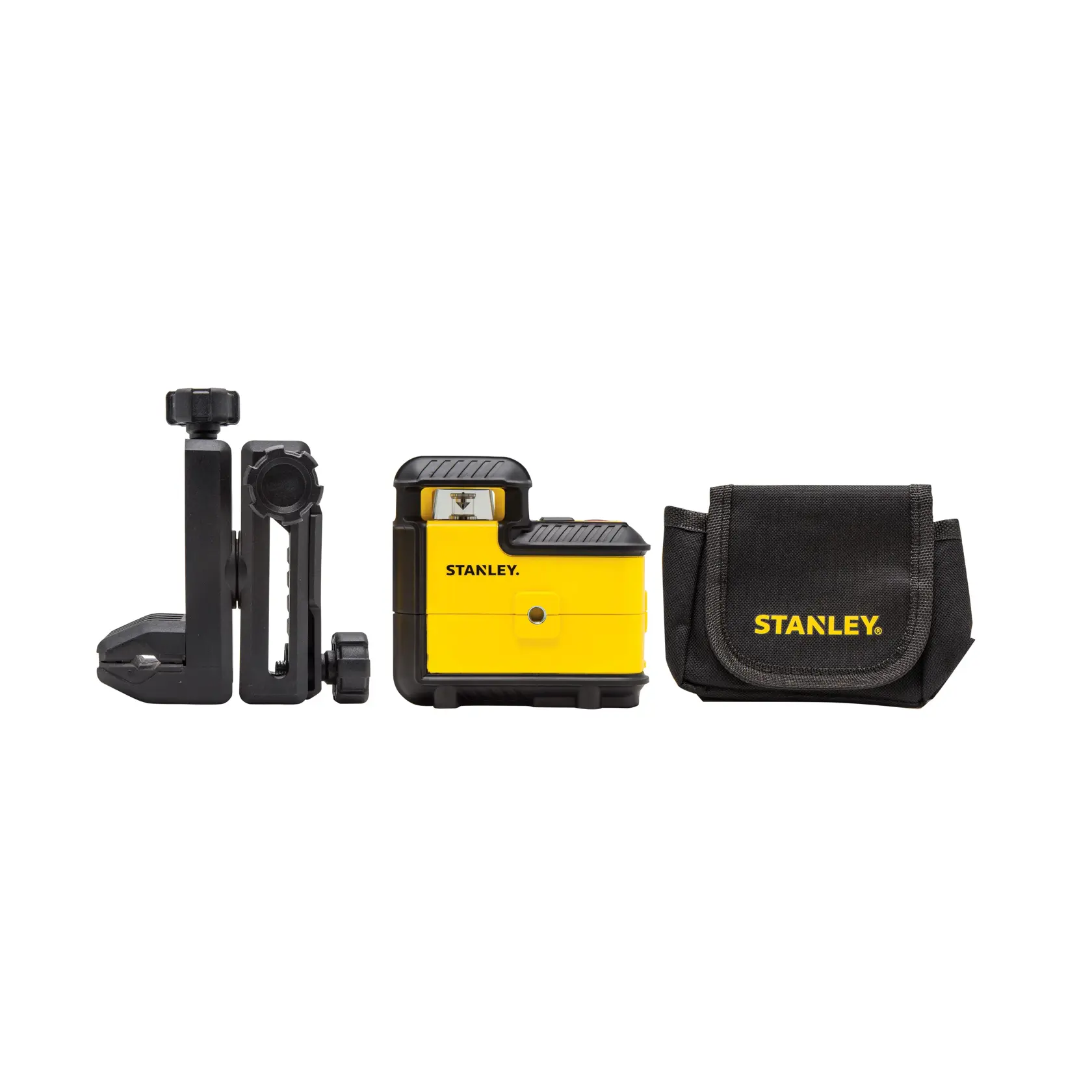

  • (1) Red Cross Line Laser
  • (1) Bracket
  • (1) Pouch
  • (4) AA Batteries

  • 1 Year Limited Warranty, 3 Year Limited Warranty When Registered

Downloads

Instruction Manual, Type 1
STHT77504-1_STHT77594-1_T1_EU.pdf
PDF
Instruction Manual, Type 1
STHT77504-1_KS_EN_RU_TR_UA_091219.pdf
PDF
