FMHT77595-1

FATMAX® Cross Line Laser Level (green)

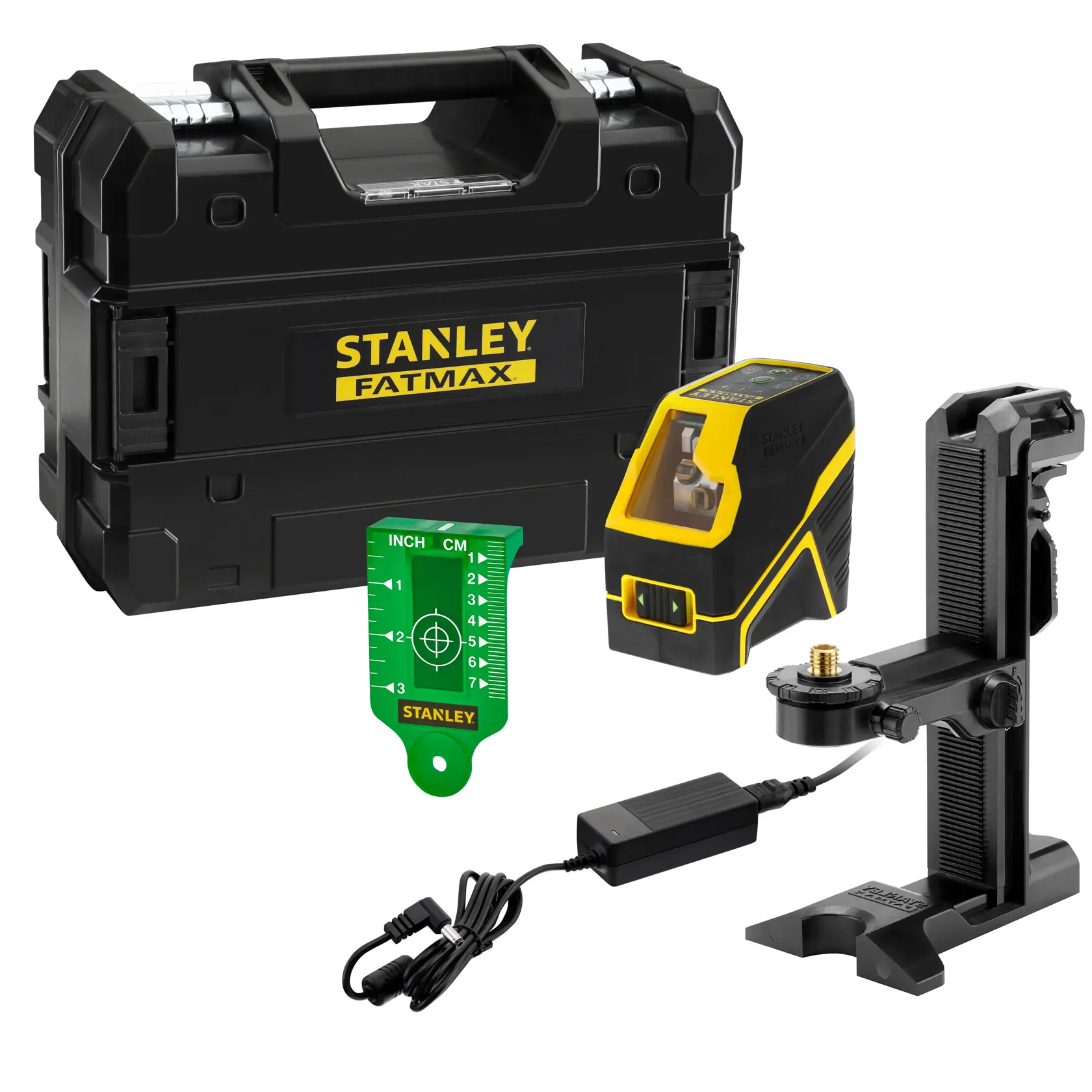

Stanley Fatmax laser level kit with case, mount, charger, and green measurement target.

Product details

The STANLEY® FATMAX® FMHT77595-1 Cross Laser makes leveling work easy indoors and outdoors. With vertical laser line and horizontal laser line, it is suitable for various applications, such as drywall work, laying wooden floors or tiled mirrors. If the laser is used with a receiver and thus increases its range from 30m to 50m, it is also ideal for jobs such as gardening and landscaping. The STANLEY® FMHT77595-1 laser automatically aligns in seconds (self-leveling) and is then ready to use. The operation is easy and intuitive thanks to the few snaps located on the top of the laser. The linear laser is protected against dust and splashes according to the IP54 standard and therefore very robust.

  • Includes TSTAK® compatible case, target card, charger and multi-bracket
  • Tripod Thread : 1/4-in & 5/8-in thread allows the unit to be mounted to a tripod
  • Wall Track Layout : Provides line visibility and alignment for wall track layout
  • Cross Line Laser Beam Projection : With 1 x horizontal and 1 x vertical line to create a cross line
  • Green Beam Laser : With a visible working range of up to 30m; up to 50m with a detector
  • Precision and Accuracy : +/- 3mm at 10m
  • IP Rated to IP54 : Protects against dust and water spray
  • Pendulum Lock : For safe transportation
  • Pulsed Beam Mode : Allows for use with a detector over an extended working range, up to 50m
  • Runs on : Internal Li-ion battery

Product Type
Line Laser Level
Power Source
Unpowered
Total Number of Batteries
1
Charger Included
Yes
Color
Black

  • (1) Green Cross Line Laser
  • (1) Target Card
  • (1) Charger
  • (1) Multi Bracket
  • (1) Case

  • 1 Year Limited Warranty, 3 Year Limited Warranty When Registered

Downloads

Instruction Manual, Type 1
FMHT77595-1_T1_EU.pdf
PDF
Instruction Manual, Type 1
STANLEY_LASER_SAFETY_WARRANTY_MANUAL_EU.pdf
PDF
